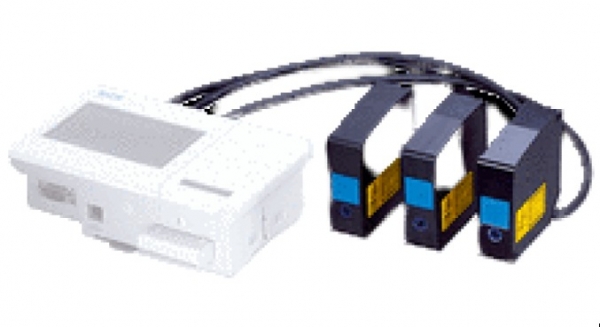

OD Precision
-
Numerous measuring ranges from 24 mm ... 26 mm to 300 mm ... 700 mm
-
CMOS receiving element for measurement independent of surface
-
Maximum measurement accuracy and frequency
-
Glass thickness measurement with just one sensor head
-
Various light spot sizes
-
Integrated calculations for up to three sensors
-
Stand-alone use via RS-422
Technical overview:
Measuring range:
24 mm ... 700 mm
Linearity:
± 1.6 µm ... ± 400 µm
Repeatability:
0.02 µm
0.2 µm
1 µm
2 µm
5 µm
10 µm
Response time:
≥ 0.1 ms
Output time:
≥ 0.1 ms
Measuring frequency:
≤ 10 kHz / ≤ 1.25 kHz
Digital output:
5 x PNP, NPN
Light source:
Laser, red
Type of light:
Visible red light
Serial:
RS-422
Analog output:
Number: 3
Type: Current output / voltage output
Ambient temperature, operation:
–10 °C ... +50 °C
