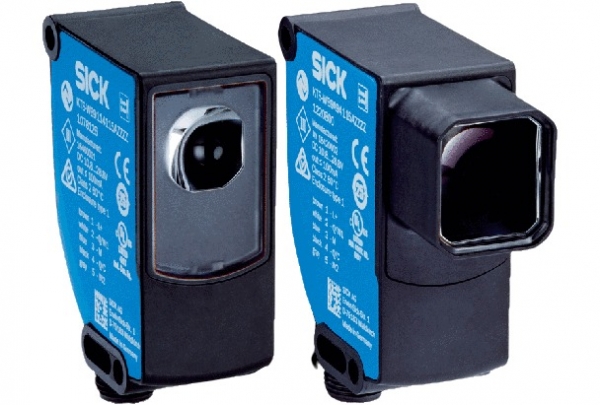

KTS prime
- TwinEye-Technology for increased depth of field and sensing distance tolerance.
- 50 kHz switching frequency and 5 μs jitter.
- Large dynamic range means reliable detection of contrasts on glossy materials.
- 7-segment display.
- Color mode.
- Assembly feedback.
- IO-Link and automation functions.
- Flexible sensor setting thanks to various sensor parameters.
Technical overview:
Dimensions:
(W x H x D) 26 mm x 62 mm x 47.5 mm
Sensing distance:
25 mm
13 mm
27.5 mm
40 mm
150 mm
70 mm
Type of light:
LED - White
LED - RGB
Light spot size:
0.9 mm x 3.8 mm
0.8 mm x 8 mm
1.2 mm x 5.3 mm
3.8 mm x 0.9 mm
3.9 mm x 0.9 mm
5.3 mm x 1.2 mm
Ø 0.9 mm
Ø 3.3 mm
Ø 10 mm
Ø 12 mm
Switching frequency:
1.5 kHz
11.5 kHz
16.5 kHz
50 kHz
25 kHz
70 kHz
6.25 kH
Response time:
320 µs
42 µs
60 µs
10 µs
20 µs
3 µs
80 µs
Switching output:
Push-pull: PNP/NPN
PNP
PNP, NPN
Adjustment:
N-point teach-in, 2-point teach-in, teach-in dynamic, auto mode
1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode
Connection type:
Male connector M12, 5-pin / male connector M12, 4-pin
Communication interface:
IO-Link
Analog
