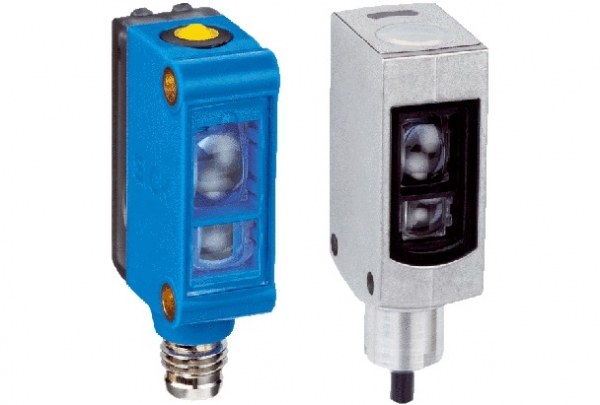

KTM Prime

Small housing allows installation even where space is limited.
Powerful, fast contrast sensor ensures high machine throughput.
Three-color LED technology allows a reliable process, with contrast marks detected even in conditions with weak contrast ratios.
Good contrast resolution and a very large dynamic range ensure good detection performance on glossy materials, thus increasing the range of application possibilities.
Various teach-in methods enable more flexible commissioning.
Long service life, even in harsh environments, thanks to stainless steel housing; as a result, excellent system throughput and low spare parts costs.
Enhanced diagnostics and visualization of sensor parameters, as well as quick and easy format changes, since parameter settings can be downloaded via IO-Link.

Variations:

KTM-MN31181P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, White
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: Ø 2 mm (12.5 mm)
Connection type Detail: Male connector M8, 4-pin

KTM-MP317A1P

Communication interface: IO-Link
Adjustment: Cable, IO-Link, Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark
Light source: LED, White
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: Ø 2 mm (12.5 mm)
Connection type Detail: Male connector M8, 4-pin

KTM-MP11181P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, White
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin

KTM-WP11173P

Contrast sensors KTM Prime
Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in static
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M8 male connector, 4-pin

KTM-WP11171P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in static
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin

KTM-MN11181P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, White
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin

KTM-MP31181P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, White
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: Ø 2 mm (12.5 mm)
Connection type Detail: Male connector M8, 4-pin

KTM-MP31181PS01

Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, White
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: Ø 2 mm (12.5 mm)
Connection type Detail: Male connector M8, 4-pin

KTM-WP11172P

KTM-WN11172P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in static
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M12 male connector, 4-pin

KTM-WN11181P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin

KTM-WN117A1P

Communication interface: IO-Link
Adjustment: Cable, IO-Link, Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin

KTM-WN11182P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M12 male connector, 4-pin

KTM-MP31182P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, White
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: Ø 2 mm (12.5 mm)
Connection type Detail: Cable with M12 male connector, 4-pin

KTM-WP1A182V

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, RGB
Sensing distance: 11 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M12 male connector, 4-pin

KTM-WN1A182V

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, RGB
Sensing distance: 11 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M12 male connector, 4-pin

KTM-WP117A1P

Communication interface: IO-Link
Adjustment: Cable, IO-Link, Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin

KTM-WP11181P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin

KTM-WP11182P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M12 male connector, 4-pin

KTM-WP11282P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M12 male connector, 4-pin

KTM-WN11173P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in static
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M8 male connector, 4-pin

KTM-WN11171P

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in static
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin

KTM-WN11184P

KTM-WP1A7A2V

Communication interface: IO-Link
Adjustment: Cable, IO-Link, Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark
Light source: LED, RGB
Sensing distance: 11 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M12 male connector, 4-pin

KTM-WN11101PS07

Light spot size: 1.5 mm x 6.5 mm
Switching frequency: 15 kHz
Sensing distance: 12.5 mm
Type of light/Light emission: RGB
Communication interface: -
Switching output: NPN

KTM-WN11101PS09

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in static + proximity to mark, ET: Teach-in static + proximity to mark
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin

KTM-WP11101PS08

Communication interface: -
Adjustment: Teach-in button
Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: dynamic Teach-in: Q-Signal switches during teach-in
Light source: LED, RGB
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin

KTM-WP1A282V
