CSM

CSM

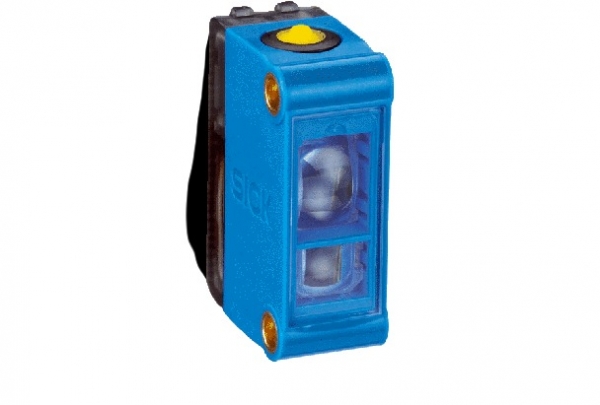

  • Color sensor in a new miniature housing

  • Static and teach-in method for 1 color using control cable or control panel

  • Over IO-Link up to 8 colors teachable

  • Switching frequency: 1.7 kHz

  • Sensing distance: 12.5 mm

  • Compatibility with older color sensors thanks to cable with male connector M12


Variations:

  • CSM-WP117A2P

Color sensors CSM
Communication interface: IO-Link
Light source: LED, RGB
Output (channel): 8 colors via IO-Link
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M12 male connector, 4-pin
Light spot direction: Vertical

  • CSM-WP11122P

Color sensors CSM
Communication interface: -
Light source: LED, RGB
Output (channel): 1 color
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M12 male connector, 4-pin
Light spot direction: Vertical

  • CSM-WN11122P

Color sensors CSM
Communication interface: -
Light source: LED, RGB
Output (channel): 1 color
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable with M12 male connector, 4-pin
Light spot direction: Vertical

  • CSM-WP11121P

Color sensors CSM
Communication interface: -
Light source: LED, RGB
Output (channel): 1 color
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin
Light spot direction: Vertical

  • CSM-WP117A1P

Color sensors CSM
Communication interface: IO-Link
Light source: LED, RGB
Output (channel): 8 colors via IO-Link
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Male connector M8, 4-pin
Light spot direction: Vertical

  • CSM-WN11124P:

Color sensors CSM
Communication interface: -
Light source: LED, RGB
Output (channel): 1 color
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 1.5 mm x 6.5 mm
Connection type Detail: Cable, 4-wire
Light spot direction: Vertical


Can't see what you're looking for? Contact us! We can provide further stock as to what's on our shop.

This product is currently unavailable.
