• Identify and store up to four colors. No need to reprogram the sensor for changeovers, reducing downtime.
• High resolution colors can be matched exactly for better process reliability.
• Maintains the extreme precision of the light spot, enabling a consistent object detection.
• A bar graph display provides information about the color quality and detection reliability, ensuring simple process monitoring.
• Broad spectrum of color tolerances enables more flexible use.
• Fast response times at high speeds for reliable detection.
• Detection reliability is not affected by varying temperatures.

Variations:

• CS81-P3612

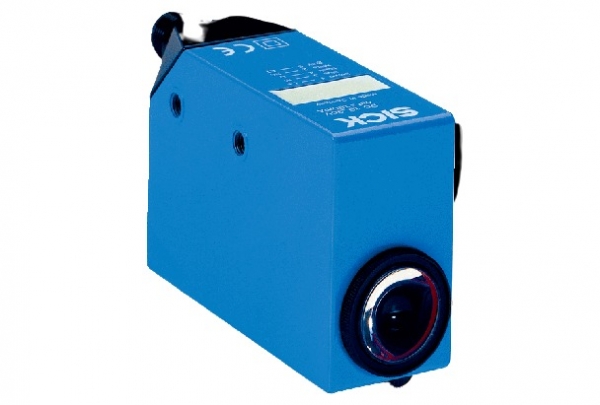

Color sensors CS8
Light source: LED, RGB
Output (channel): 1 color
Sensing distance: 60 mm
Switching output: PNP
Light spot size: 13 mm x 13 mm
Connection type Detail: Male connector M12, 5-pin

• CS81-N1112

Color sensors CS8
Light source: LED, RGB
Output (channel): 1 color
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 2 mm x 4 mm
Connection type Detail: Male connector M12, 5-pin
Light spot direction: Vertical


• CS84-N3612

Color sensors CS8
Light source: LED, RGB
Output (channel): 4 colors
Sensing distance: 60 mm
Switching output: NPN
Light spot size: 13 mm x 13 mm
Connection type Detail: Male connector M12, 8-pin

• CS84-P3612

Color sensors CS8
Light source: LED, RGB
Output (channel): 4 colors
Sensing distance: 60 mm
Switching output: PNP
Light spot size: 13 mm x 13 mm
Connection type Detail: Male connector M12, 8-pin


• CS84-P1112

Color sensors CS8
Light source: LED, RGB
Output (channel): 4 colors
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 2 mm x 4 mm
Connection type Detail: Male connector M12, 8-pin
Light spot direction: Vertical


• CS81-P1112

Color sensors CS8
Light source: LED, RGB
Output (channel): 1 color
Sensing distance: 12.5 mm
Switching output: PNP
Light spot size: 2 mm x 4 mm
Connection type Detail: Male connector M12, 5-pin
Light spot direction: Vertical

• CS81-N3612

Color sensors CS8
Light source: LED, RGB
Output (channel): 1 color
Sensing distance: 60 mm
Switching output: NPN
Light spot size: 13 mm x 13 mm
Connection type Detail: Male connector M12, 5-pin

• CS84-N1112

Color sensors CS8
Light source: LED, RGB
Output (channel): 4 colors
Sensing distance: 12.5 mm
Switching output: NPN
Light spot size: 2 mm x 4 mm
Connection type Detail: Male connector M12, 8-pin
Light spot direction: Vertical

• CS81-P3612S02

Color sensors CS8
Light source: LED, RGB
Output (channel): 1 color
Sensing distance: 60 mm
Switching output: PNP
Light spot size: 13 mm x 13 mm
Connection type Detail: Male connector M12, 5-pin
